Timbren Axle-Less Suspension for Trailer (1984-Present) – ASR35HDS02
$1,378.32- EUR: 1,209.52€
- GBP: £ 1,154.20
- AUD: $1,966.96
- AED: د.ا4,974.10
- NZD: $2,340.41
- JPY: ¥217,706
- SGD: $1,777.47
- ZAR: R22,084.62
- PLN: zł5,110.22
- EUR: 1,209.52€
- GBP: £ 1,154.20
- AUD: $1,966.96
- AED: د.ا4,974.10
- NZD: $2,340.41
- JPY: ¥217,706
- SGD: $1,777.47
- ZAR: R22,084.62
- PLN: zł5,110.22

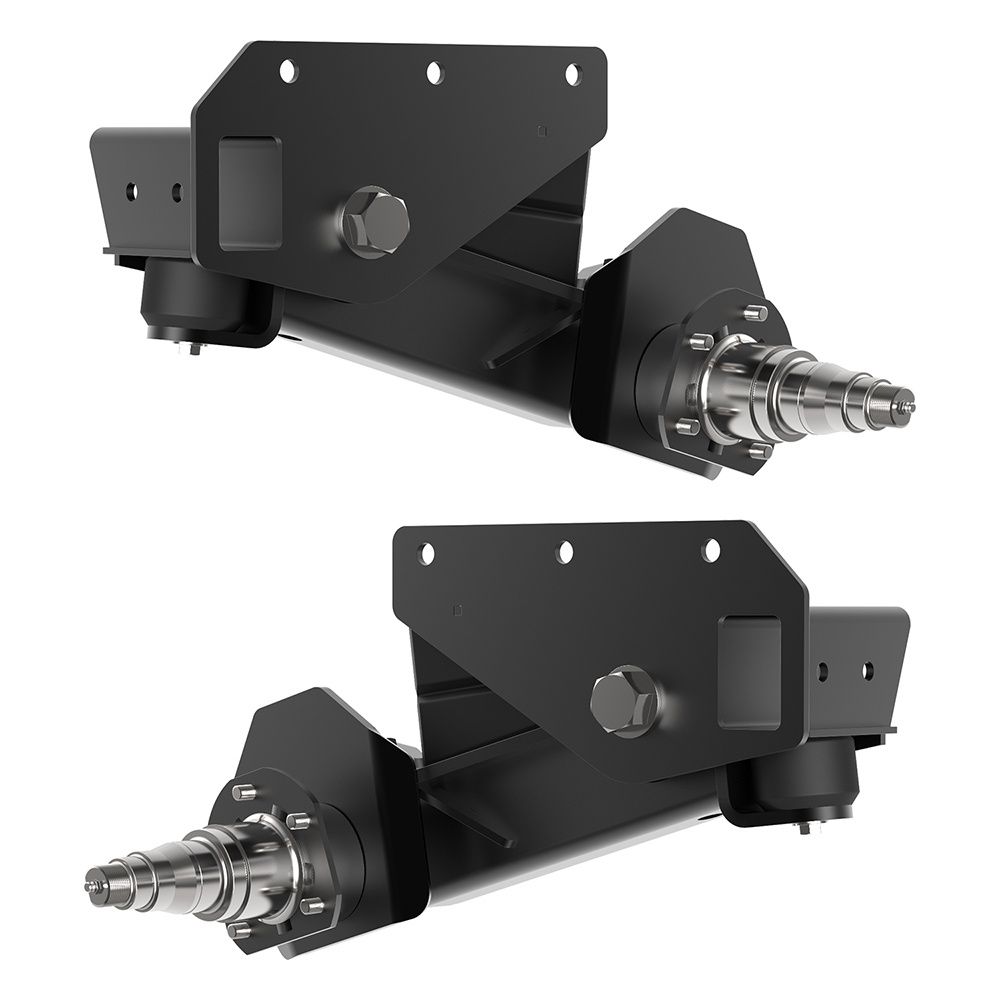

The Timbren Axle-Less 3500lb suspension Base Unit (1585kg). This kit includes the suspension units and spindles only. HUBS ARE NOT INCLUDED. Designed for custom trailer builds where the user provides their own hub/bearing assemblies. LEGAL NOTE: For road legality in UK/EMEA, unbraked trailers must not exceed 750kg GVW.
SKU# ASR35HDS02
KEY FEATURES & SPECS
- Vehicle Category: Trailers
- Make: Universal
- Models: Trailer
- Years: 1984-2026
- Nominal Capacity: 1585 kg
- Bump Load Capacity: 1585 kg
APPLICATIONS:
Off-Road Trailer, Expedition Trailer, Camper Trailer, Heavy-Duty Towing, Utility Trailer
Note: Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.
WHAT’S INCLUDED & HOW TO INSTALL

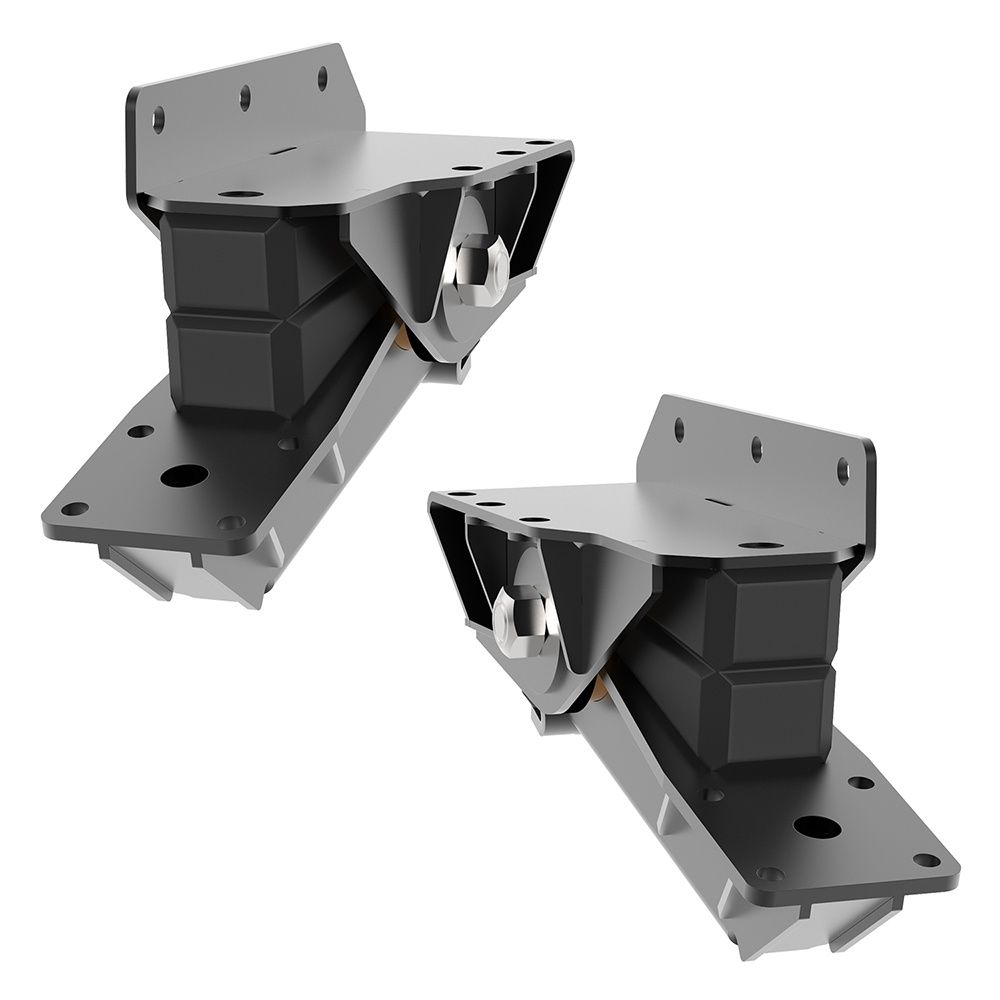

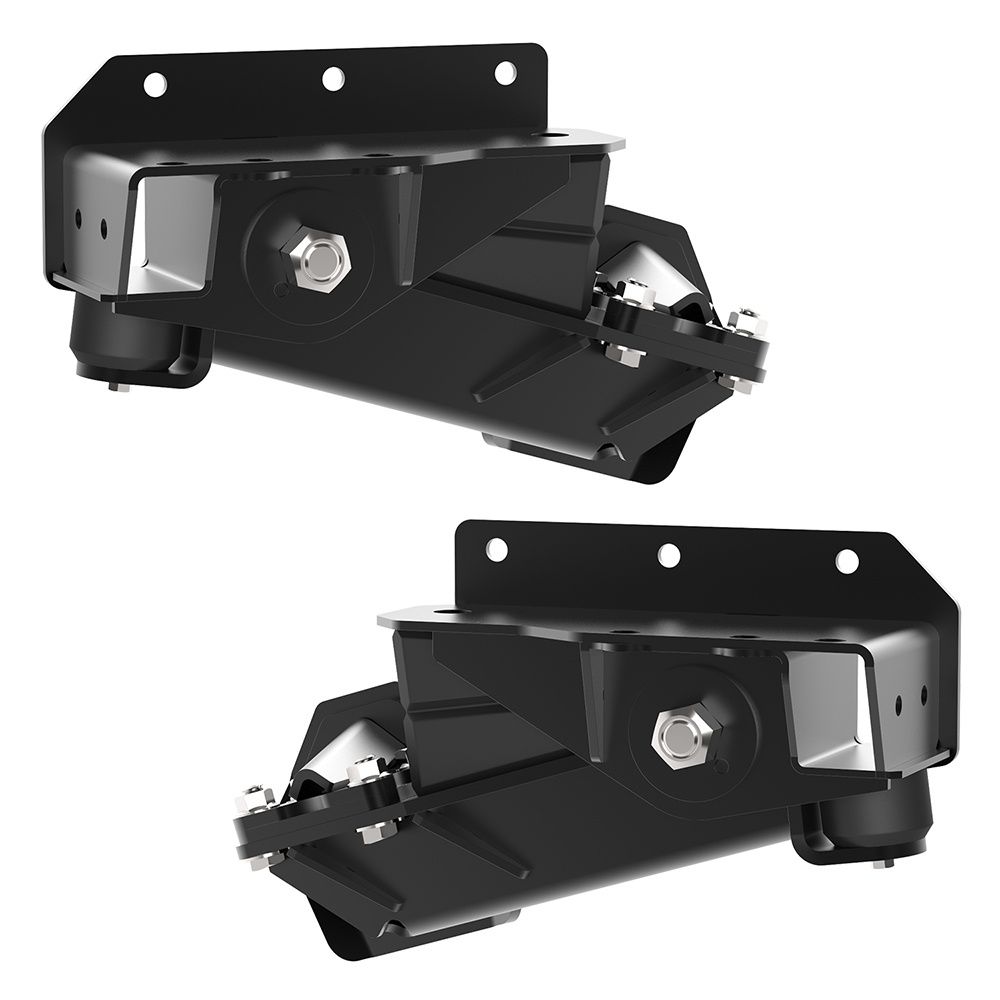

- 2x HD Axle-Less Suspension Units (1984-Present)

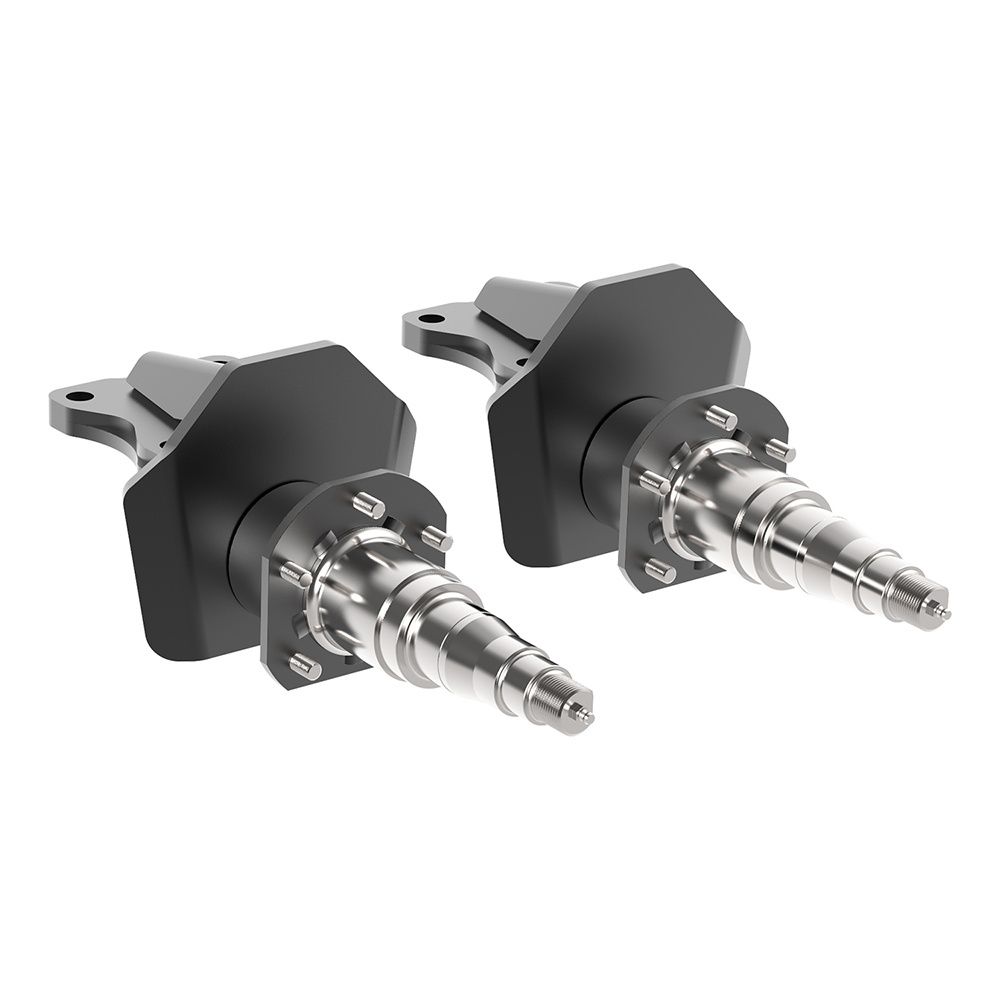

- 2x HD Outboard Arms & Spindles
- 8x Camber Alignment Shims
- Grade 10.9 Zinc-Coated Mounting Hardware
- Digital Installation & Alignment Manual
How to Install (Download PDF)
Timbren Axle-Less Suspension for Trailer (1984-Present) – ASR35HDS02.pdf
FITMENT
1585kg (3500lb) Unit – Long Spindle HD. Required for wide off-road tires (up to 12.5″).
- Fitment Notes: IMPORTANT: For road legality in UK/EMEA, unbraked trailers must not exceed 750kg GVW. Total Physical Capacity: 1585kg. Universal Trailer Fitment. IMPORTANT: Tire clearance is based on a standard ‘Zero Offset’ trailer wheel. If using wheels with a Positive Offset (common on factory 4×4 wheels like Ranger/HiLux), wheel spacers or a Long Spindle may be required to prevent inner sidewall rubbing. Max tire width: 235mm (Standard Spindle) / 12.5″ (Long Spindle).
- Vehicle Trims: Universal
- Drivetrain Compatibility: Universal
- Suspension Support Location:
- Kit Type: Trailer
SKU#: ASR35HDS02
Timbren Axle-Less Suspension for Trailer (1984-Present) – ASR35HDS02
CUSTOMS INFO
HS Code: 8716909090
Origin: CA
Content: Trailer Suspension System (Independent)
Our Timbren SES kits are built to last. We back this up with a lifetime warranty.
Covered under this warranty are defects in material and workmanship, under normal use and service for the life of the vehicle on which the kit was originally installed.
Shipping & Returns
- 30 days returns
- Lifetime Warranty and 100-Day Money Back
- Precise shipping rates on every order is quality-checked at our UK centre before final export to ensure fitment accuracy
Next Working Day Delivery: Available for UK mainland orders only placed before 10:00 a.m., Monday to Friday and standard processing for orders placed after 10:00 a.m. or those containing non-stock items will be processed within our standard import-to-order timeline.
This excludes Saturday, Sunday and public holidays.
SEE OUR SPRINGS IN ACTION
Install right in your driveway, no special skills or tools needed. Be ready to ride and haul in less than 30 minutes.
Timbren SES (Suspension Enhancement System) has emerged as the premier rival to complex airbag systems.
If your suspension is failing to carry the weight or absorb the inconsistencies of the trail, it’s time for an upgrade. For a maintenance-free solution that provides load-leveling and stability, Timbren SES products are the gold standard.
